Computational Auditory Scene Analysys and Sound Separation

Contents

Multi-channel based Sound Separation

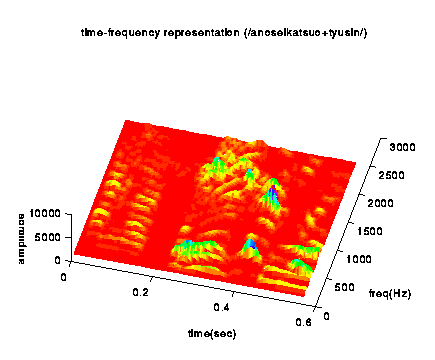

Time-Frequency Representation of Sound

Time-frequency representation of a sound obtained as the output of a set of band-pass filters. To match the sensitive level of human, the level of each frequency band is adjusted by the MAF (minimum audible field) curve of human.

[Next]

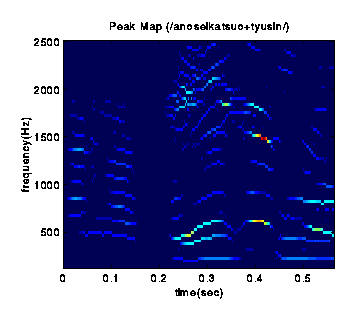

Local Peak Map

[Prev],[Next]

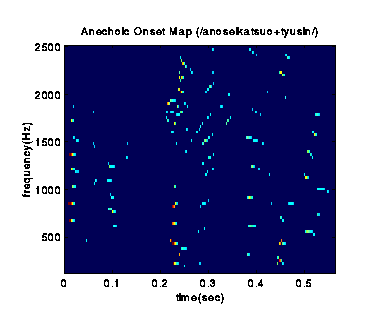

Echo-Free Onset Map based on the Model of the Precedence Effect

A map of estimated sound to echo ratio in time-frequency domain.

Detected echo-free onsets by the model of the precedence effect.

[Prev],[Next]

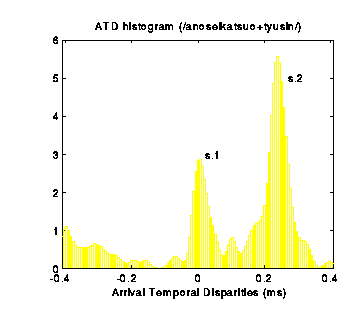

Histogram of Onset ATDs

 The Arrival temporal disparity (ATD) of each sound component (between different channels) is calculated at the onset of component. A histogram of onset ATD is calculated in which each significant peak probably corresponds to an existing sound source. Sound components are then separated according to their assigned groups.

[Prev],[Next]

Grouping Components by Onset ATDs

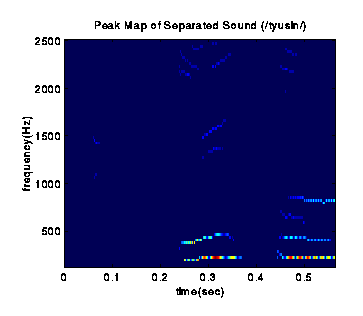

 Sound component group 1 (/tyusin/).

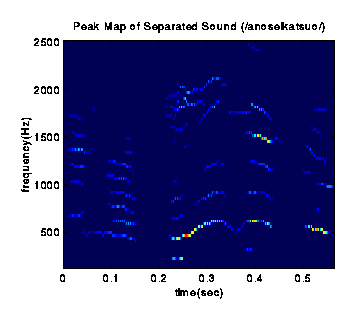

Sound component group 2 (/anoseikatsuo/).

[Prev],[Next]

Results of Separation

 The following figures show the waveforms of sound before and after the separation.

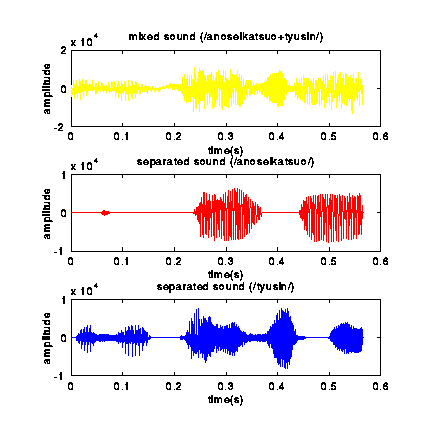

(Experiment in an Anechoic Chamber)

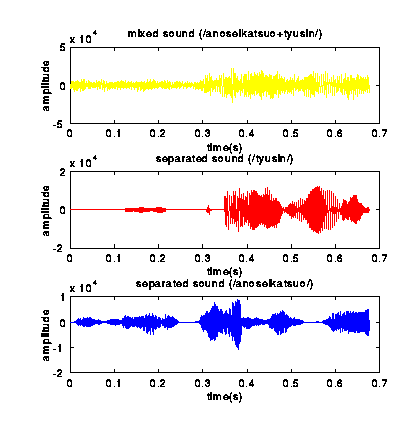

(Experiment in an empty room enclosed with concrete walls)

[Prev]

[Return to home page]
last modified: 19 August 2000 by Jie Huang (j-huang@u-aizu.ac.jp).
