How to displaying signals in the waveform window

• After you click on View Waveforms button in Verilog-XL window the Waveform window appears.

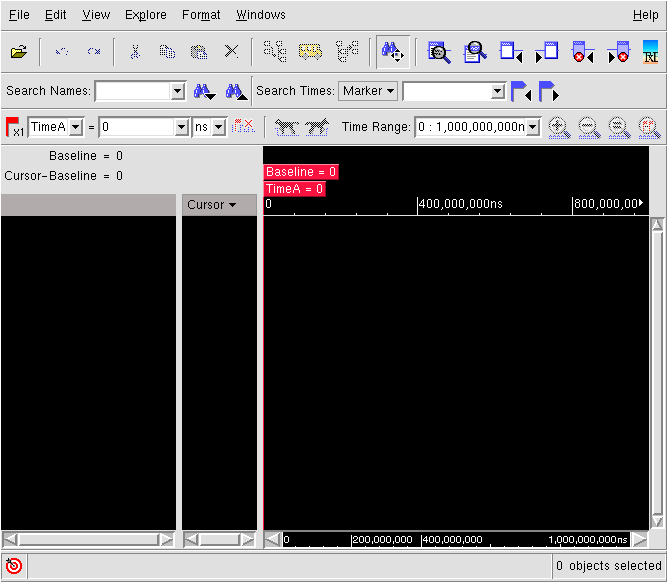

Figure 1-1 Waveform Window



• In the Waveform window select Windows --> New Design Browser. The Design Browser window appears.

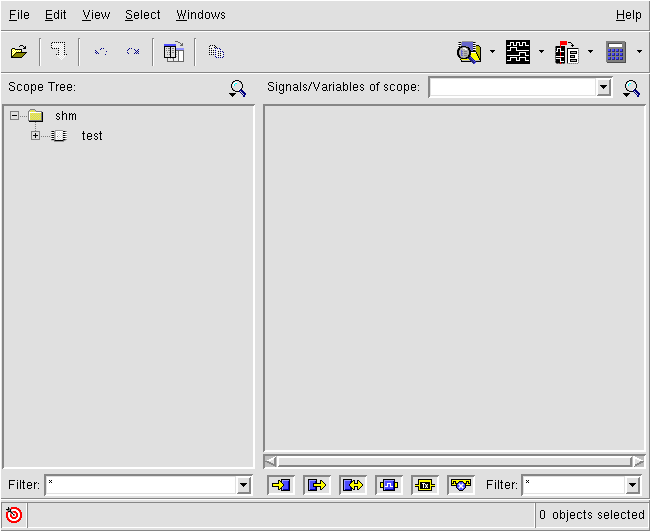

Figure 1-2 New Design Browser Window



• The Design Browser displays your design hierarchy in a scope tree.
  • Click the + button to display the next lower level.
  • Click the - button to remove all lower-level hierarchies from the scope tree.
• Displaying Selected Signals
• When you select a scope in the scope tree, the Design Browser displays the signals in the signal tree on the right.
• Select a single object by clicking on it.
• Select contiguous objects by Shift-clicking on the objects.
• Select non-contiguous objects by Control-clicking on the objects.

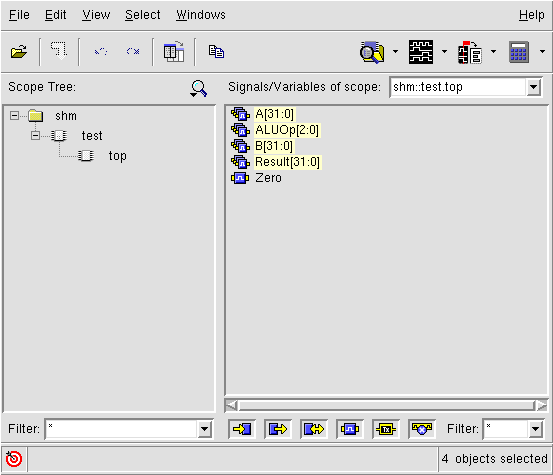

Figure 1-3 A scope tree in New Design Browser Window



• Click the Waveform button to send the objects to the waveform window.

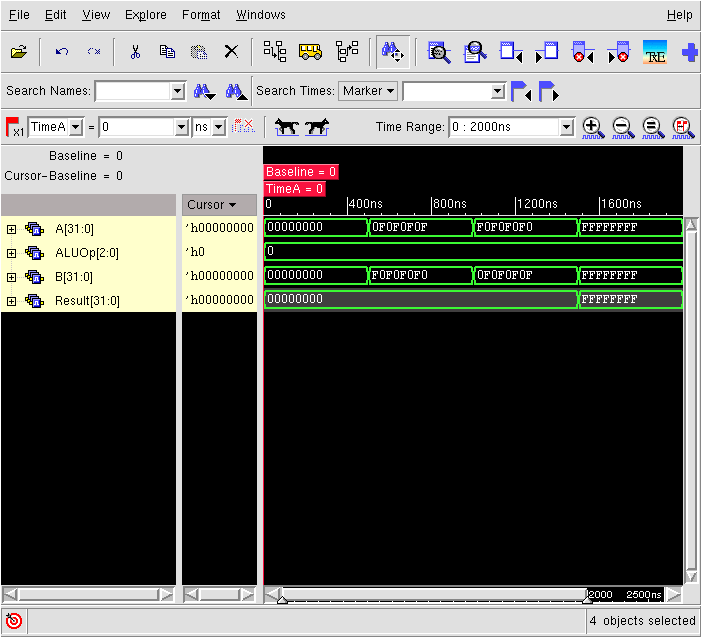

Figure 1-4 Display signals in the waveform window



• Click help in the menu bar of the waveform window you will get more details.
